Ladder Dock with Landing Platform
)
)
)
)
)
)
)
)
)
)
)
)
)
)
System Overview

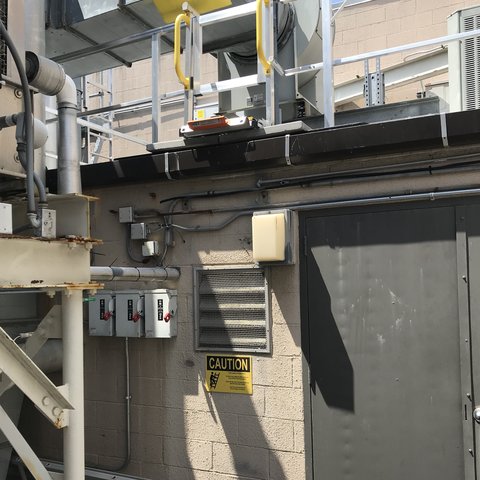

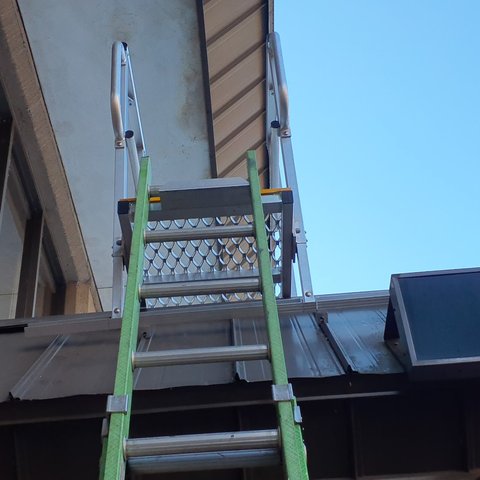

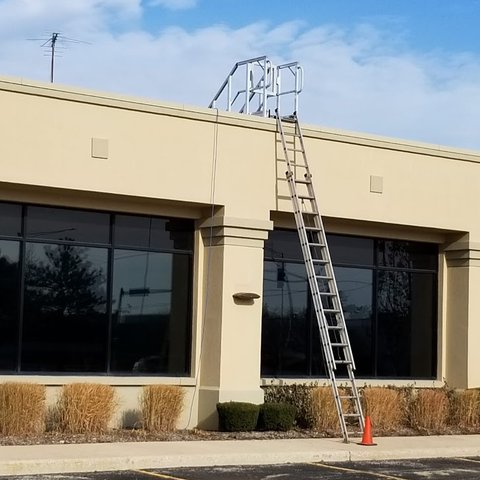

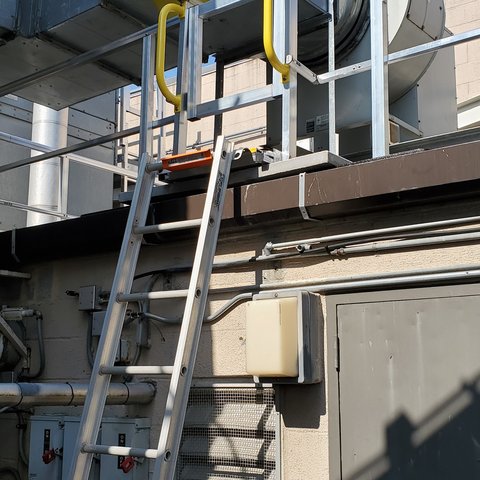

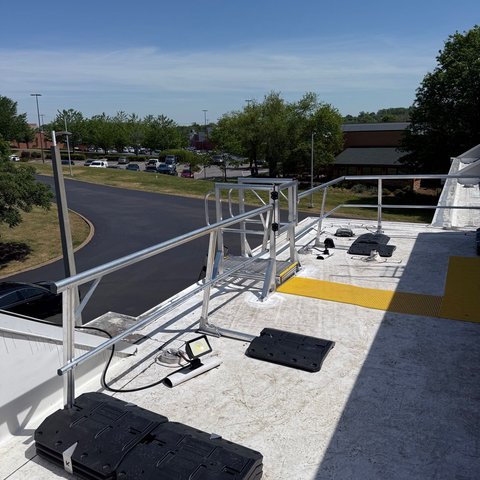

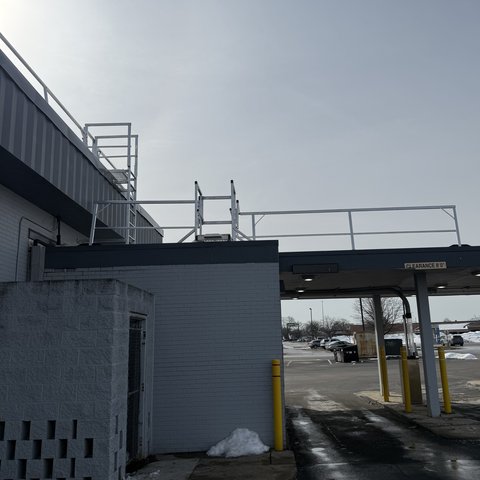

KD001 Ladder Dock with Landing platform is provides a secure attachment point for portable ladders when accessing a roof. The landing platform with self-closing gate allows the user to create a safer distance between themselves and the unprotected edge. With the support bracket and landing platform fastened to the roof, there is then a clear, secure, designated roof access area.
(4) Attachment points required per KD001. Attachment points can be supplied with project specific membrane attached. Please specify membrane manufacturer and color upon order.
Simple installation using standard fixings
Prevents sideway movement and ladder base slip
Ladder support bracket: high strength stainless steel construction
Ladder access landing platform: high strength aluminum construction
PVC, TPO, and EPDM rooftop mount options available
OSHA compliant
Attachment point approved by all major membrane manufacturers
