Roof Mount Ladder Support Bracket
)
)
)
)
:focal(1153x991:1154x992))
)
)
)
)
:focal(1153x991:1154x992))
System Overview

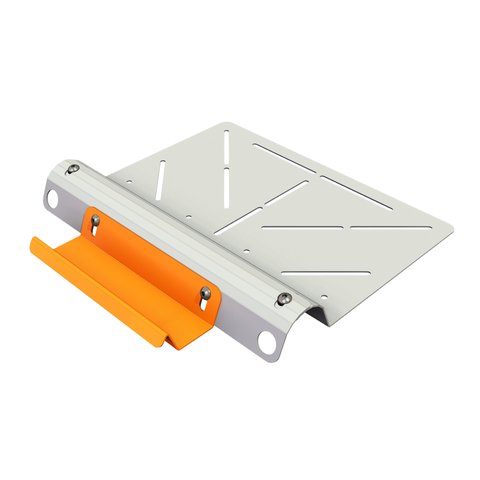

The KD402 Kattsafe Ladder Support Bracket is for mounting to the roof surface. They are designed to provide a secure attachment point for portable ladders when accessing a roof. The support bracket prevents the movement of a portable in any direction. There is a clear, designated, safe roof access area with the ladder support bracket fastened to the wall.
Working load limit: recommended for single person use, max user weight 265lbs
Simple installation using standard fixings
Prevents sideways movement and ladder base slip
High strength stainless steel construction
Low aesthetic profile, minimal visual impact
Gutter mount available
Ladder support bracket tie off cable included
)
1
2
3
4
5
6
Key features
Click the features to learn more
1. Pitch adjustment
2. Ladder rung support
3. Tie off points
4. Ladder angle adjustment
5. Mounting holes
6. Corrosion-resistant
