Vertical Fixed Ladders
Kattsafe’s vertical fixed ladders are available in multiple configurations to meet the needs of demanding applications. These lightweight aluminum ladders feature high-tensile construction, natural corrosion resistance and robotic welding for superior performance. Plus, they deliver exceptional safety ratings and meet or exceed guidelines from OSHA and ANSI.
Explore Vertical Fixed Ladder Configurations
The RL30 series fixed ladders feature modular construction for flexibility. Each includes 1 ¼-inch serrated rungs welded to the stiles and ladder bodies connected with splice joints.
Have questions about our vertical ladder systems? We have answers! Call us at 888-637-7872 or reach out online.
Find Your Ideal Ladder at Kattsafe
The versatile RL31 model with grab rails improves climbing comfort and confidence. Grab rails mount at the ladder’s head, and another rail bolts at the top to ensure more safety when exiting the ladder. Cut this unit to the exact size and assemble it on-site for a perfect fit.

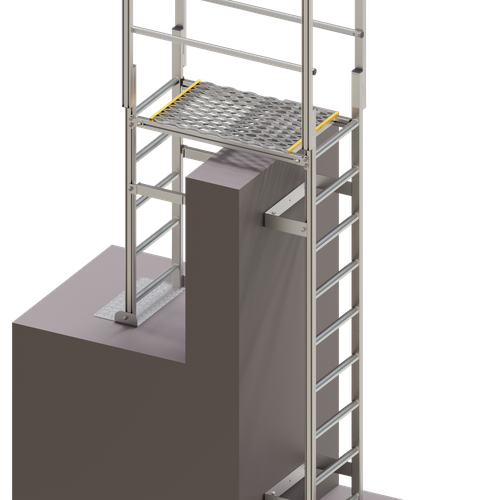

Our RL32 configuration includes a Parapet platform. At the top, you’ll find a round knee rail constructed with the same high-tensile aluminum and mounted with screws. The mesh-style platform deck has a ribbed finish for enhanced safety.
We’ve designed the RL33 fixed ladder with an 8-foot walkway at the ladder head for safer access. For extra safety and stability, mesh-style decking and round knee rails surround the platform. Attach knee rails to each post with self-tapping screws and choose from multiple mounting configurations.
The RL34 ladder for roof hatch access is a compliant solution with extruded aluminum stiles. We deliver these as a kit, and you cut the ladder’s base to length on site. Mount it with standard floor brackets or choose another mounting style.
Our RL35 model has a 3-foot platform walkway featuring a sturdy aluminum mesh and ribbed finish. We supply it as a kit for on-site sizing and assembly. Customize this design with self-closing platform gates and multiple mounting styles.
All components and accessories are manufactured from high grade structural aluminum with options for powder coating.
Overall ladder width - 23-3/4in (605mm)
Distance between stiles - 20-5/8in (525mm)
Ladder stile - Aluminum extruded stile grade 6106-T6 - 2-1/4in x 1-1/2in x 1/8in
Rung diameter - 1-1/4in SQ. 6106-T6 extruded serrated rung
Rung spacing - 12in (300mm)
Stile extension above landing surface - 42in (1070mm)
Minimum clearance behind ladder - 7in (200mm) (vertical position)
Maximum clearance behind ladder before platform required - 12in (305mm)
Maximum distance between rest platforms - 30ft (9.1m)
Ladder body sections - 6.4lb/40in (excludes fixing brackets and fixings)
Cage sections - 18lb/40in
Metal wall fixing - 3/8in bolt set minimum
Concrete/masonry wall fixing - 3/8in mechanical concrete anchor minimum (for chemical fix, use HILTI HIT-HY-200, HIT-HY-70 or VF22 and stainless hardware)
Metal purlin fixing - 3/8in toggle bolt (refer to instruction manual)
- Working Load Limit
Capacity: Unit shall support a 1000lb loading without failure, and individual treads shall withstand a 1000lb loading without failure. Industrial rated, suited to high frequency usage. Support structure integrity, suitability and fixing method to be assessed and determined by a engineer unless it is clear to a competent person prior to installation. Vertical Line Fall Arrest System must be only used with the approved fall arrest device and harness system incorporating front chest attachment and energy absorber as per OSHA & ANSI regulations.
Kattsafe ladder systems are designed and manufactured to meet and exceed requirements of OSHA standard 1910.23, 1910.28, CAL-OSHA 3277 and ANSI A14.3 as applicable.
- Product Warranty
5 years from date of purchase subject to correct installation, use and maintenance in accordance with manufacturer’s specifications and recommendations. Failure to supply and/or install proprietary product in accordance with above standards and codes, specifications, and instructions voides complete system certification and/or warranty.
