System overviews
Choose from fixed, adjustable, and suspended wall brackets to accommodate different wall clearances, mounting configurations, and support requirements. OSHA requires at least 7 inches of perpendicular clearance from the centerline of the ladder rungs to the nearest permanent object behind the ladder ((OSHA 1910.23(d)(2)).

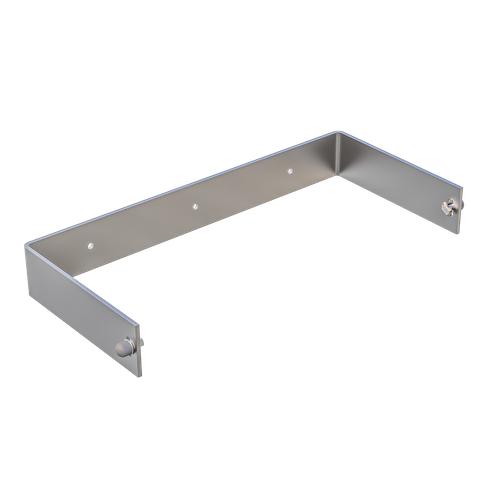

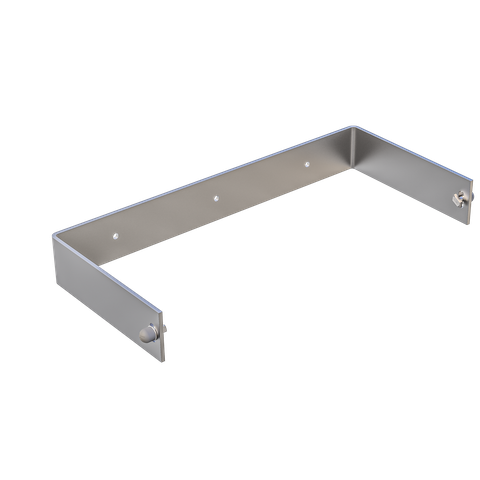

LD421.280 Standard Fixing Bracket (11in): A straightforward fixed bracket for standard ladder-to-wall mounting applications.

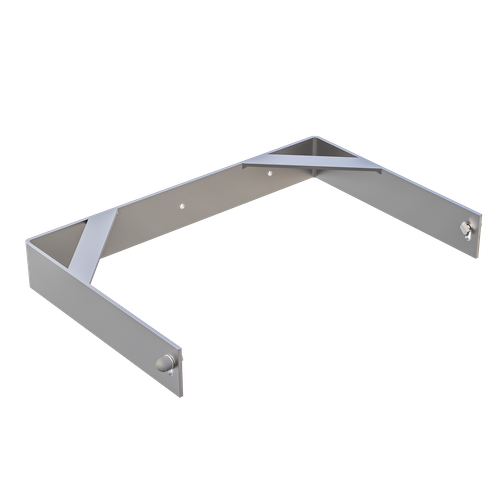

LD421.400 Gusseted Fixing Bracket (15in): A reinforced fixed bracket that provides additional clearance and support.

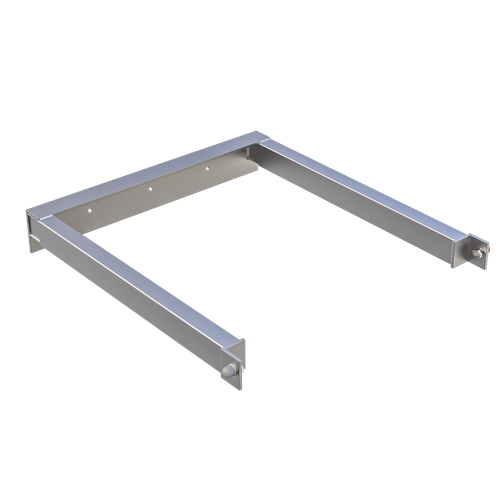

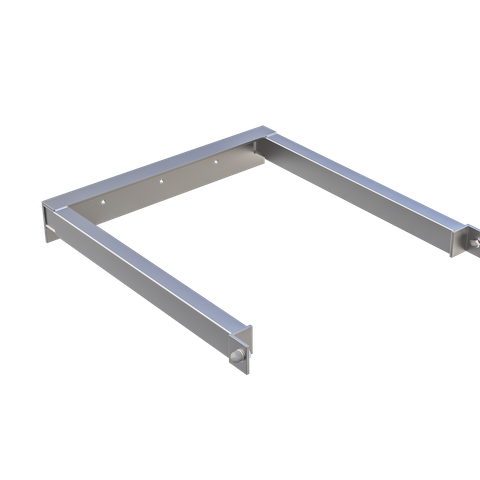

LD421.600 Adjustable Fixing Bracket (16–40in): An adjustable bracket for applications requiring greater or variable wall clearance.

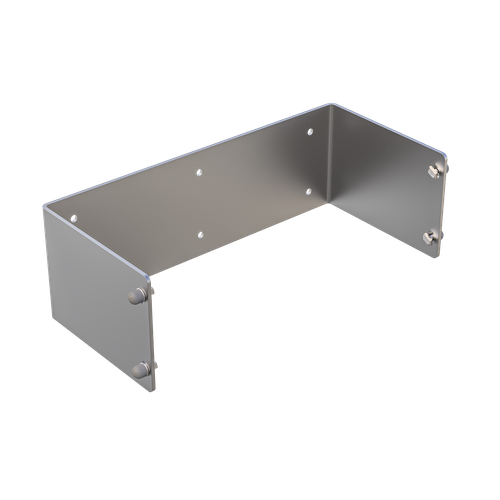

LD421.280S Suspended Fixing Bracket: Designed for use with the off-floor mount base or when a stronger wall-mounting connection is required.
Note: Mounting suitability depends on the application, supporting structure, and project requirements.
)
)
)
