System overviews

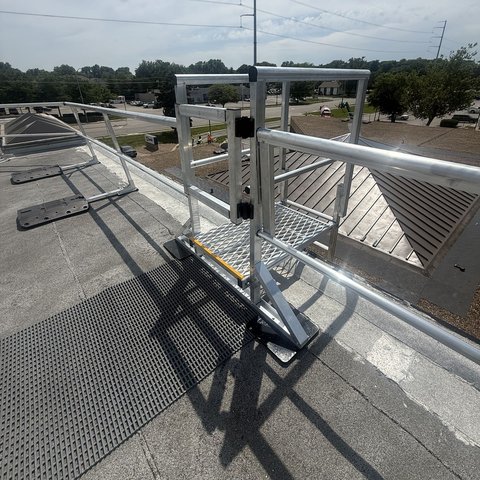

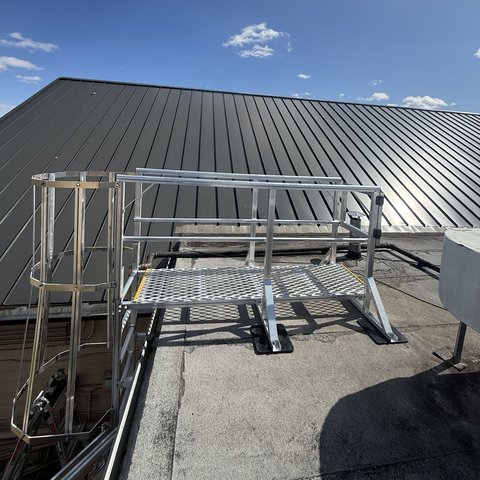

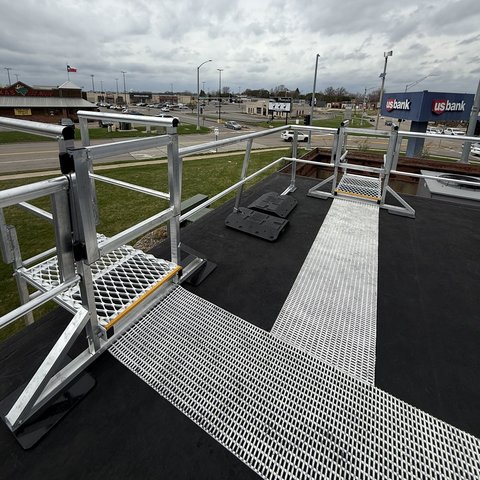

Ladder platform mounting options provide secure support for 3ft and 8ft walkway platforms used with RL23/25, RL33/35, and RL43/45 fixed ladder configurations. Select from non-penetrating, R-panel, standing seam, or membrane roof mounting options to suit the roof construction and project requirements.
Mounting Options:

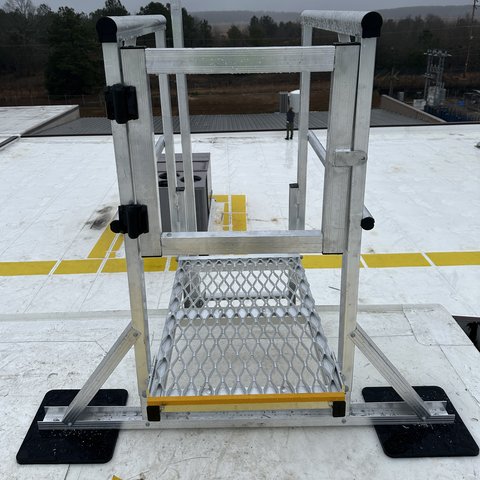

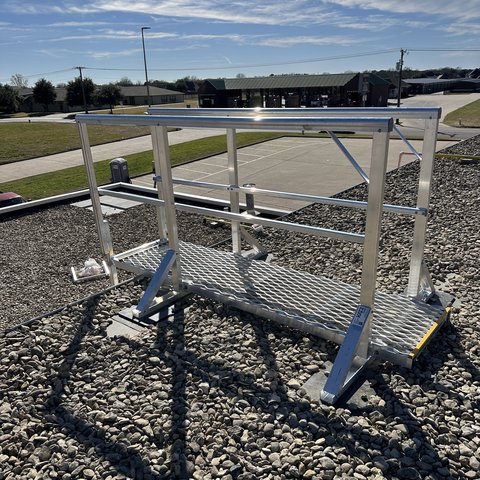

Non-Penetrating: A weighted mounting option that supports the ladder platform without penetrating the roof surface. Ideal for applications where preserving the roof membrane is a priority.

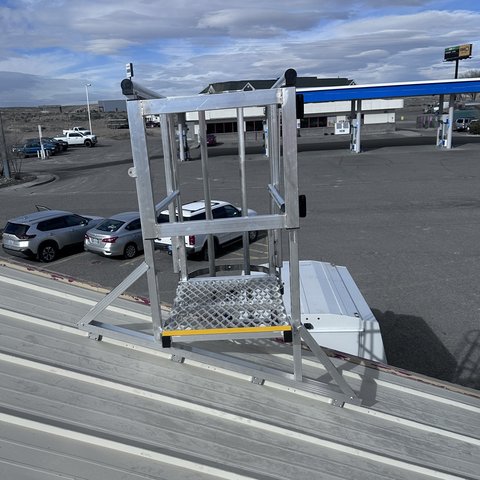

R-Panel Roof: Designed to securely mount the ladder platform to R-panel metal roofing for a stable connection suited to the roof profile.

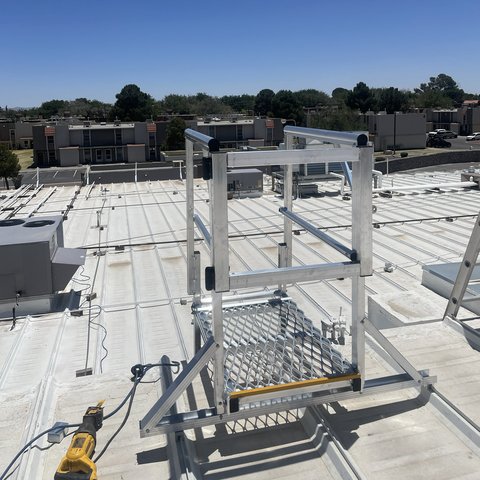

Standing Seam Roof: Attaches to standing seams using compatible clamps, providing secure platform support without penetrating the roof panels.

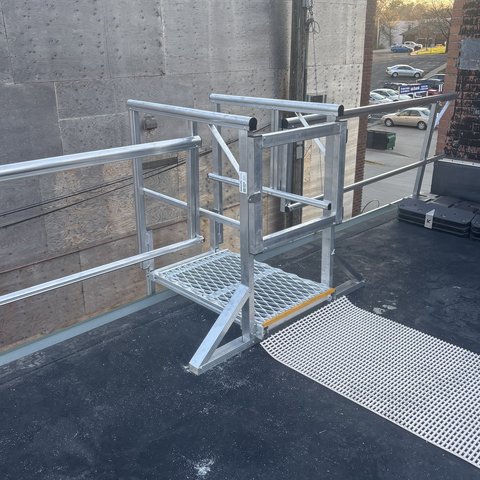

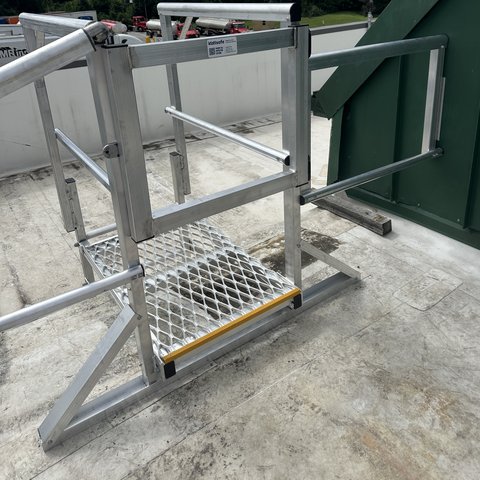

Membrane Roof: Provides a secure mounting solution for membrane and built-up roof systems. Attachment and waterproofing requirements are coordinated with the specific roof construction.
Note: Mounting suitability depends on the application, supporting structure, and project requirements.
)
)
)
)
